Black Diamond, AB

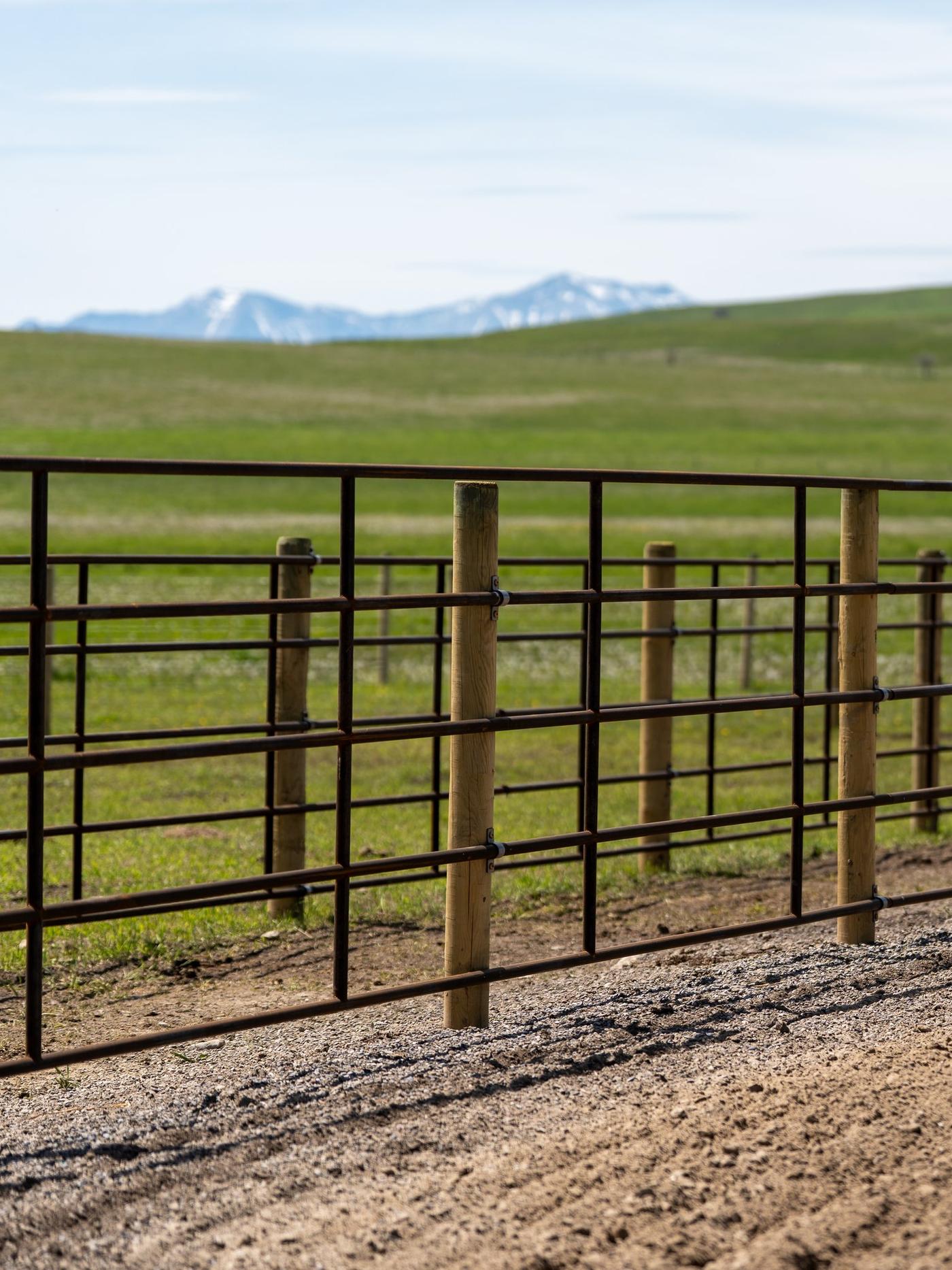

Ranchcore Panels™
Welded steel 5-rail continuous fencing. Strong, simple, and under $11/ft.
Built Different
No flat bar, no crimps — just solid steel tubing. The result is a clean, rigid panel that performs.
All-Welded Steel Tube
1-1/4" OD tube with 14ga thickness for a clean, rigid assembly.
Easy to Install
Bolts to wood or steel posts with brackets. Joined with straight connectors that slide together.
Flush on Both Sides
Vertical supports are welded in. No protruding flat bar or vertical tubing.
Build Any Layout
90°, 45°, tee, and end panel connectors for any configuration.
Competitive Pricing
Quality fencing without sacrificing your budget. Our pricing beats the alternatives.
Laser Welded
Laser welding allows for less metal distortion during welding without sacrificing strength.
Prices & Parts
All prices in CAD. No hidden costs — what you see is what you pay. Contact us for volume pricing.
| Product | Item ID | Price / pc |
|---|---|---|
|
20' Fence Panel (5-Rail) Core

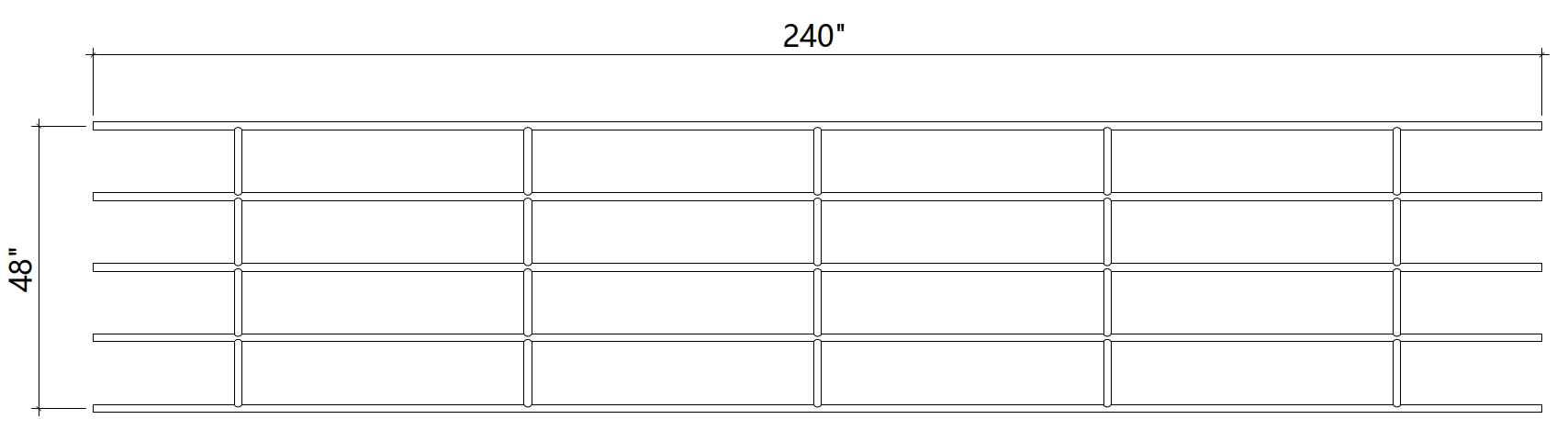

20' long × 4' tall · 1.25" OD · 14ga welded tube
|
DF | $205.00 |
|
Straight Connector
Joins panels to directional connectors and end panels
|
DC | Included |
|

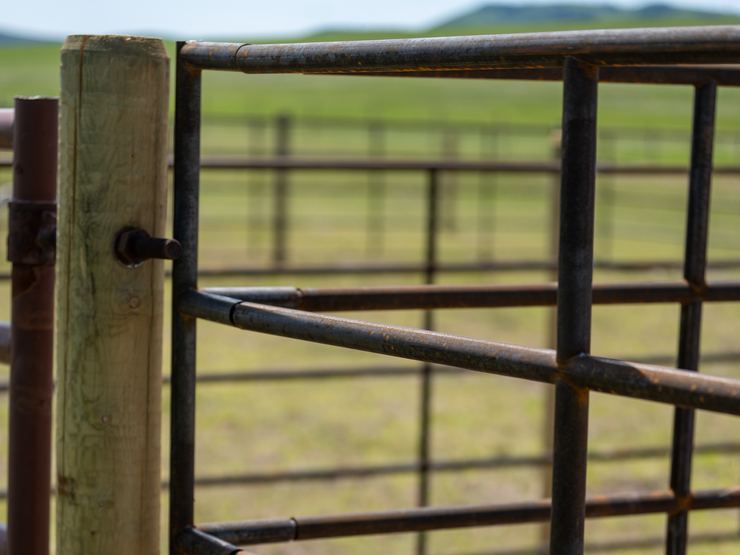

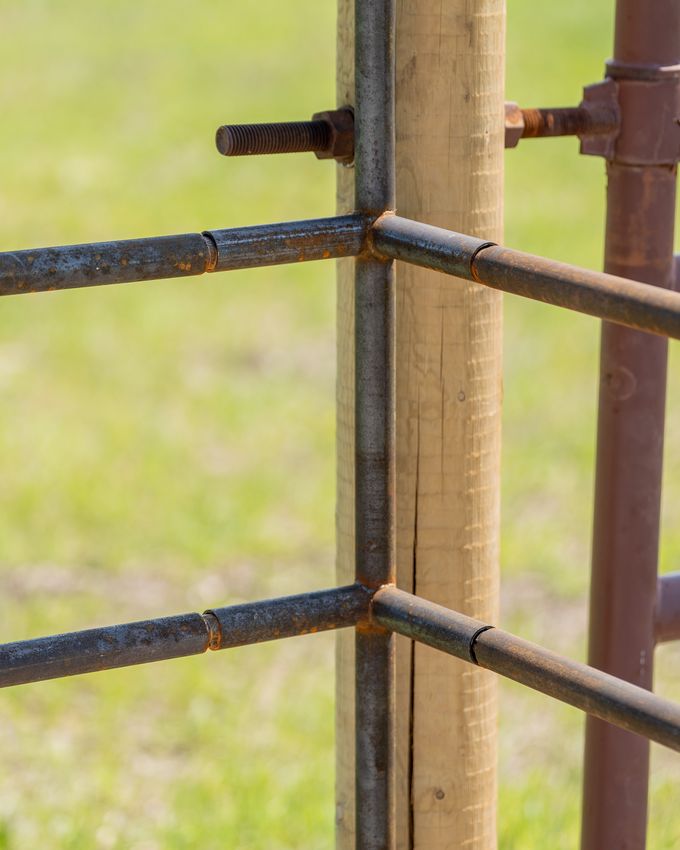

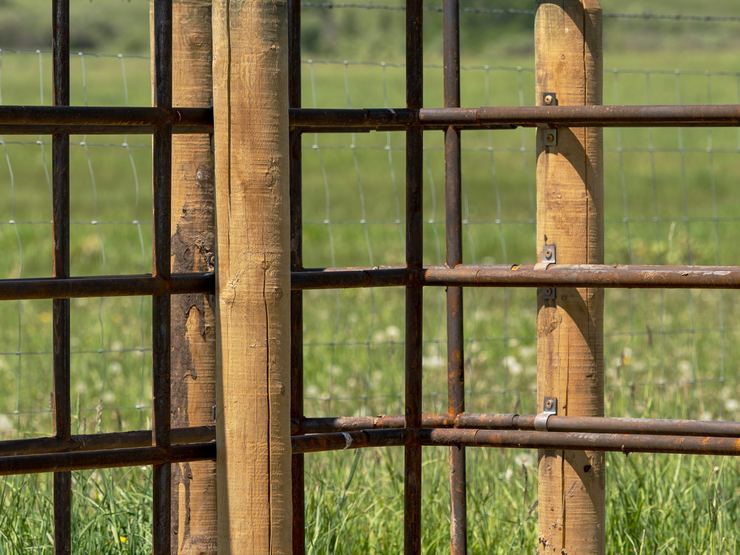

90° Corner Connector
Joins two panels at a right angle
|
D90 | $45.00 |
|

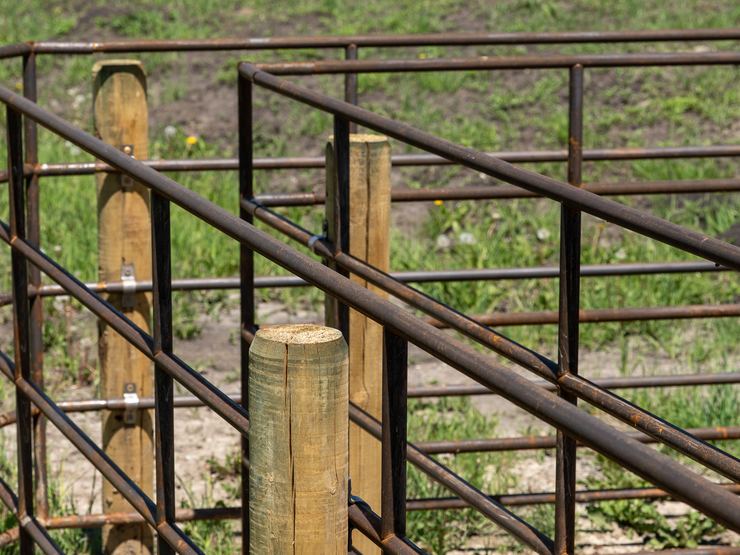

45° Angle Connector
Joins two panels at a 45° angle
|
D45 | $45.00 |
|
Tee Connector
Joins three panels in a T shape
|
DT | $55.00 |
|

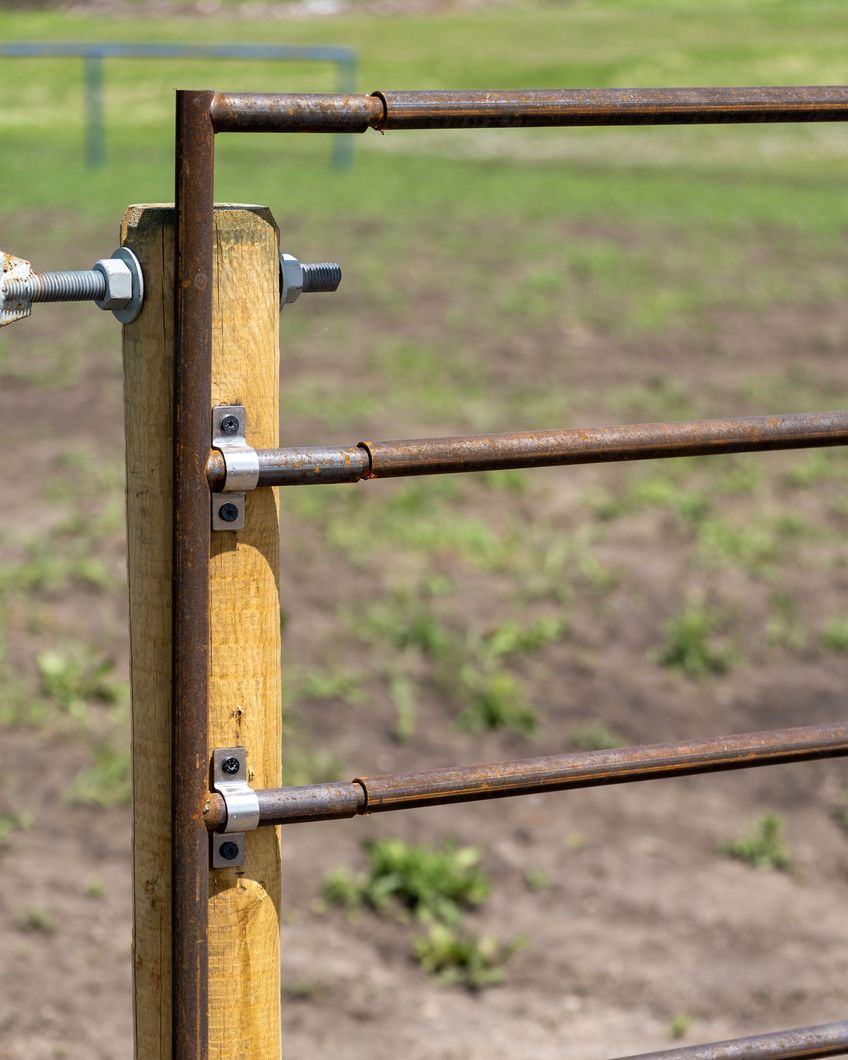

End Panel Connector
Caps off the end of a fence run
|
DE | $35.00 |
|

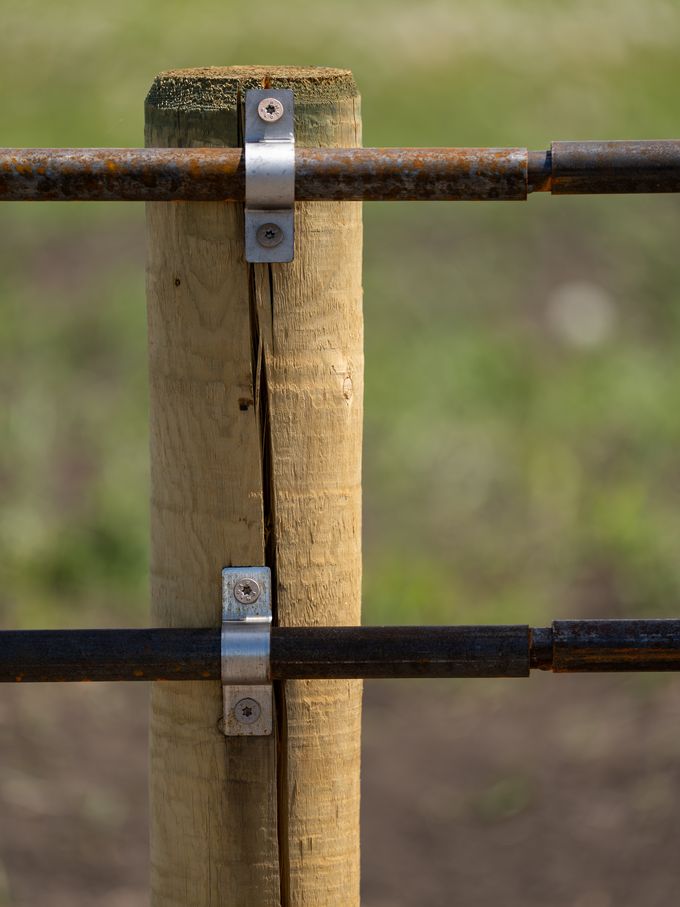

Mounting U-Bracket
3.5" L × 1.2" W × 1/8" thick · 2 screw holes · Bolts panels to your posts
|
DB | $2.00 |
Every panel, directional connector and end panel comes with straight connectors to join them together.
We recommend at least 6 U-brackets per panel for a solid mount. 9 U-brackets is preferred.
All prices in CAD. Call us for bulk pricing.
Panel-to-Panel Connectors

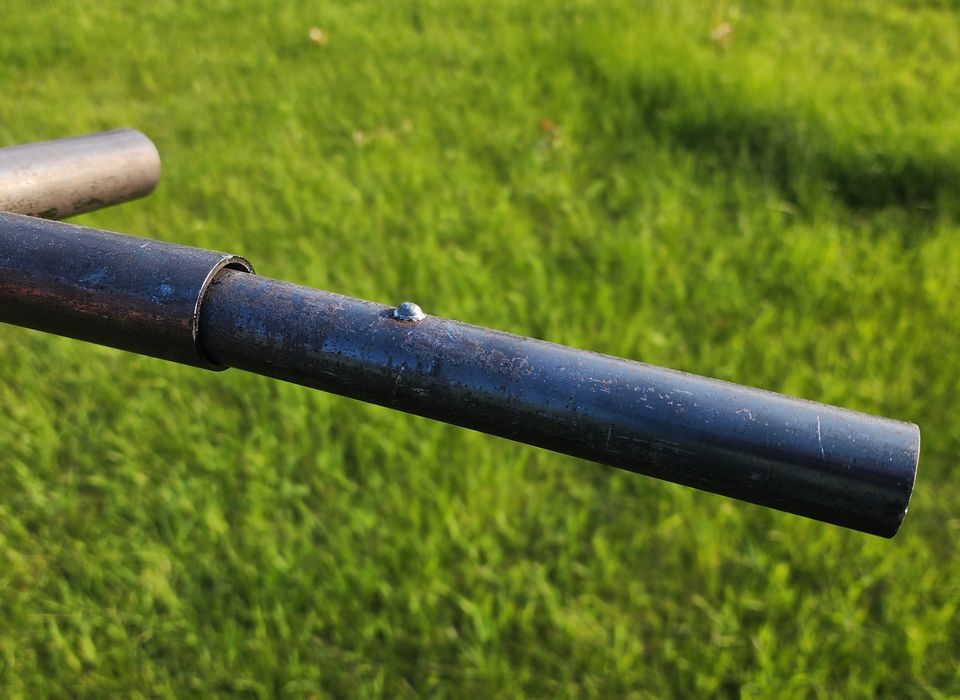

Joining continuous fencing panels is easy. Every panel ships with 10" straight connectors, so your fence goes together as fast as you can set it in place.
- Included with every panel — 10" straight connectors with a welded dimple that slide into one panel and into the next, and take up any misalignment in posts or panels.
- Always fits, no hammering — unlike swaged connections that sometimes need pounding to seat, these connectors slide together every time, even when posts aren't perfectly in line.
Built for the Land.
Built to Last.
Ranchcore Products was started with one goal: to provide quality, function-driven products to the farming and agricultural industry at prices that make sense.
Based out of Black Diamond, Alberta, our Ranchcore Panels provide a quality continuous fencing solution that works and doesn't break the bank.
Our Ranchcore panel system uses sliding connectors that make installation quick and easy. If you're looking for continuous fencing in Alberta — or anywhere in Canada — we'd be glad to help with your project.
Built to Last
Medium-duty 14ga laser welded steel tubing — engineered for durability in demanding conditions.
Direct to You
We sell direct to consumer — no middleman markup. Dealers and distributors can contact us for special rates.

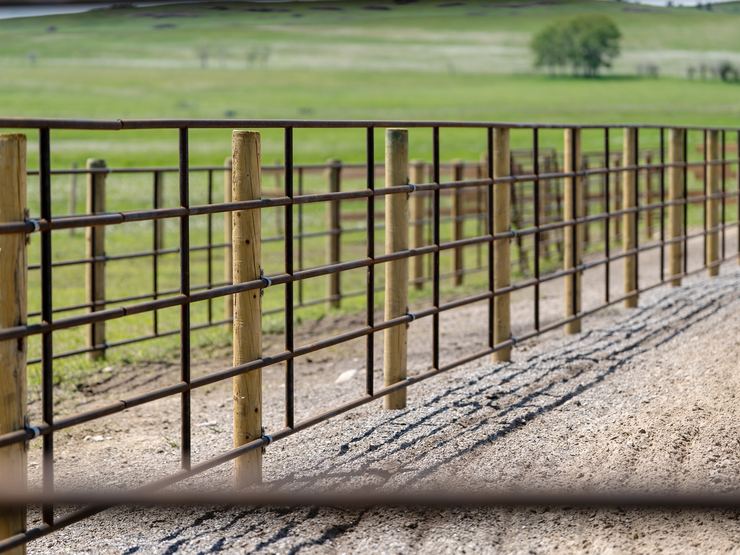

See It In Action

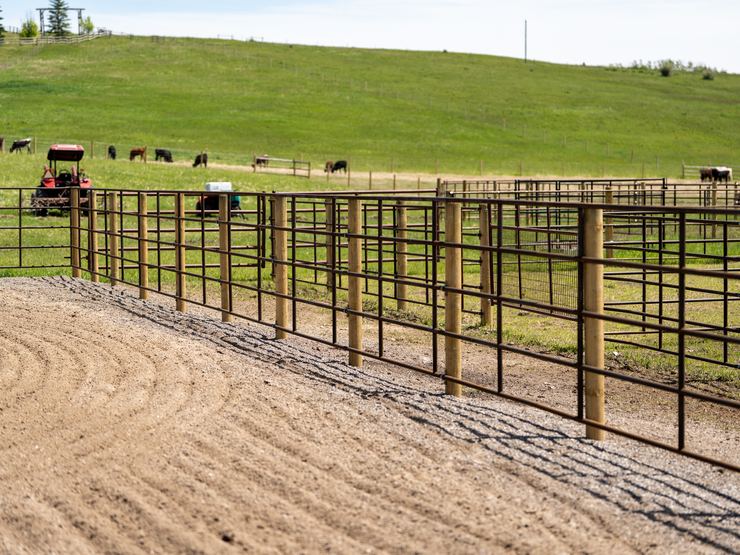

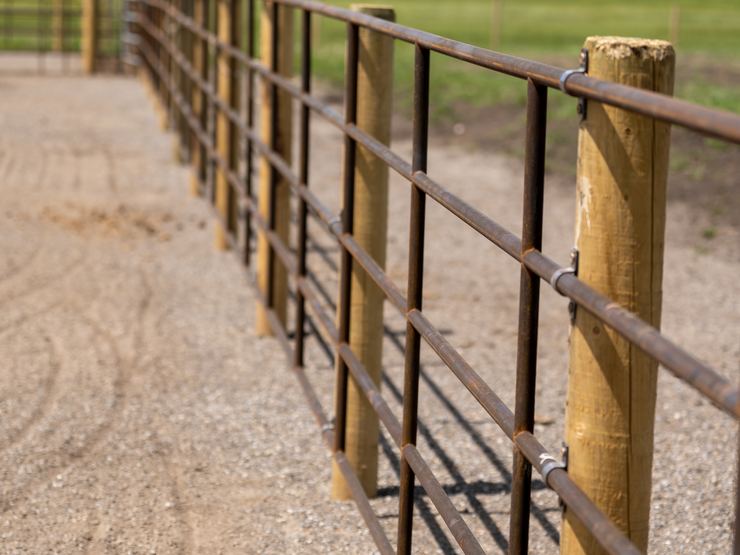

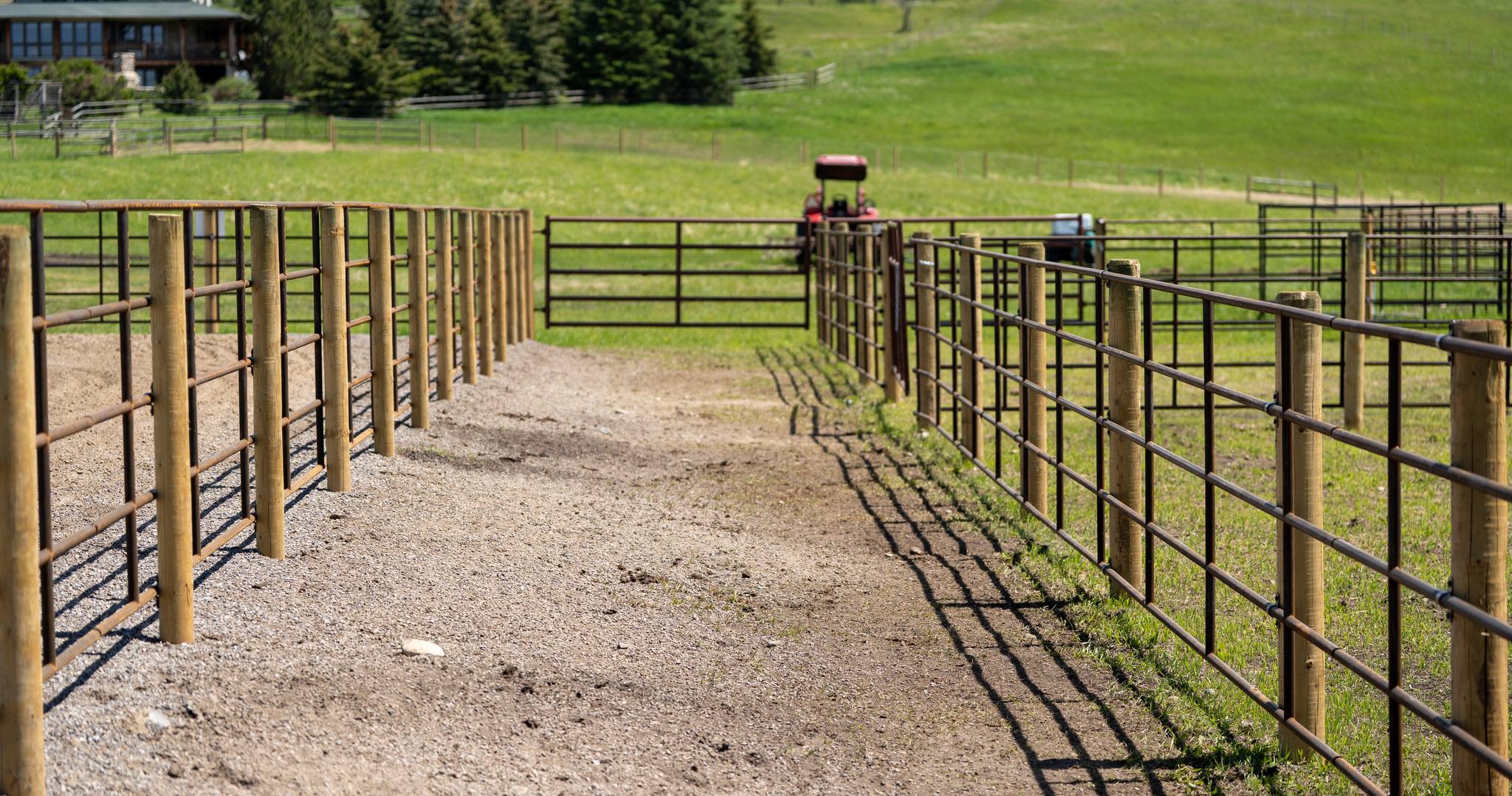

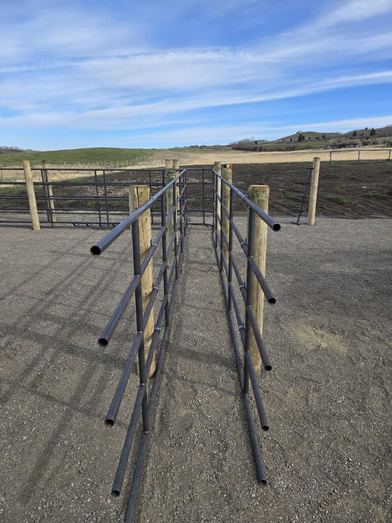

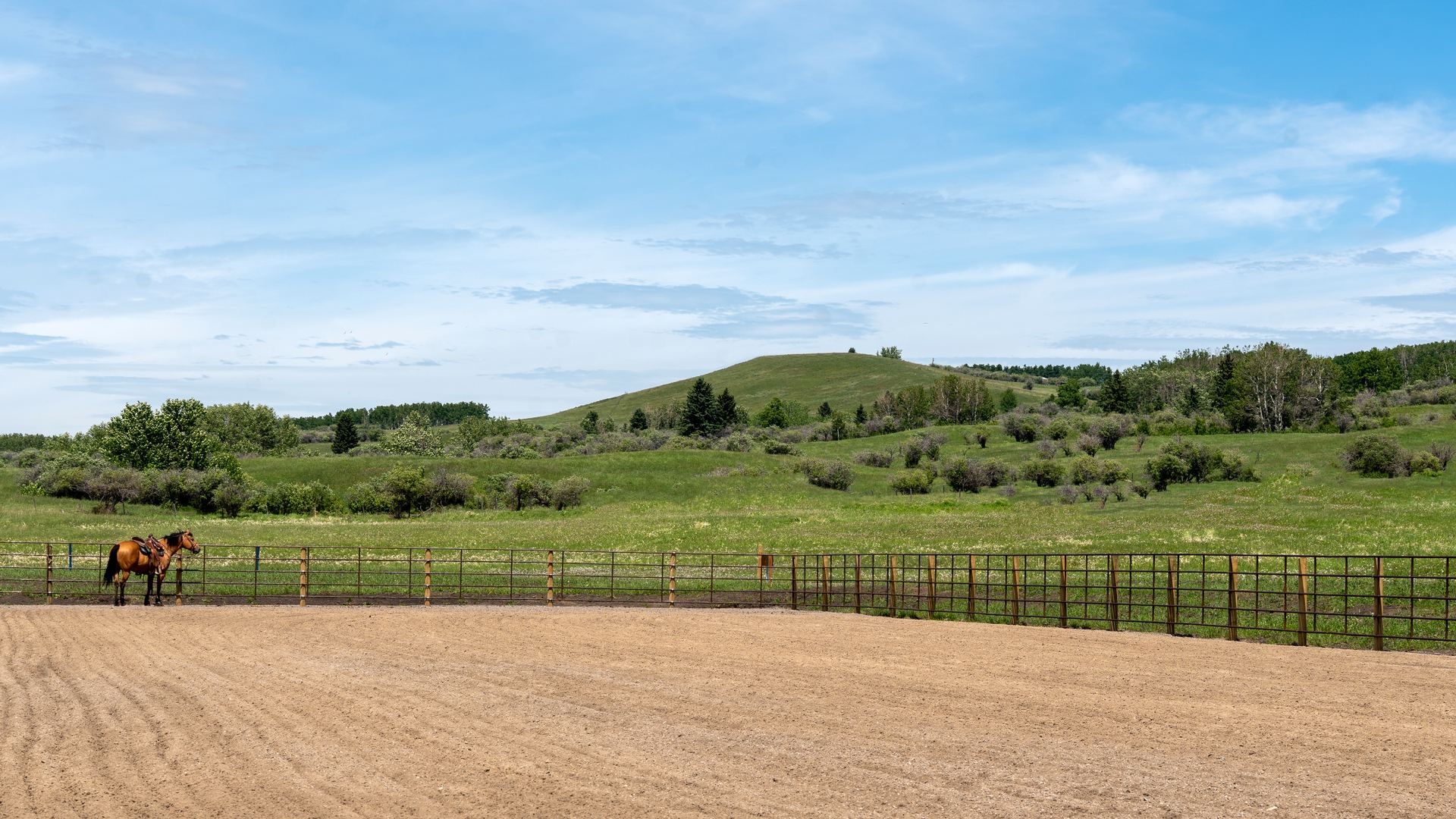

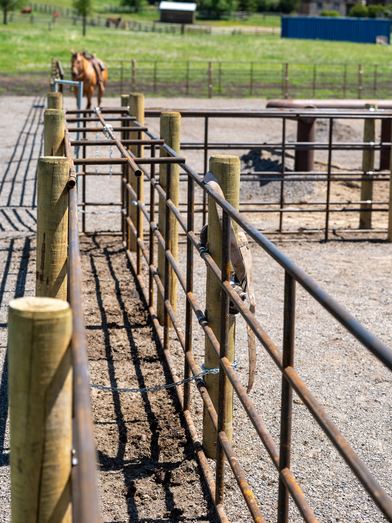

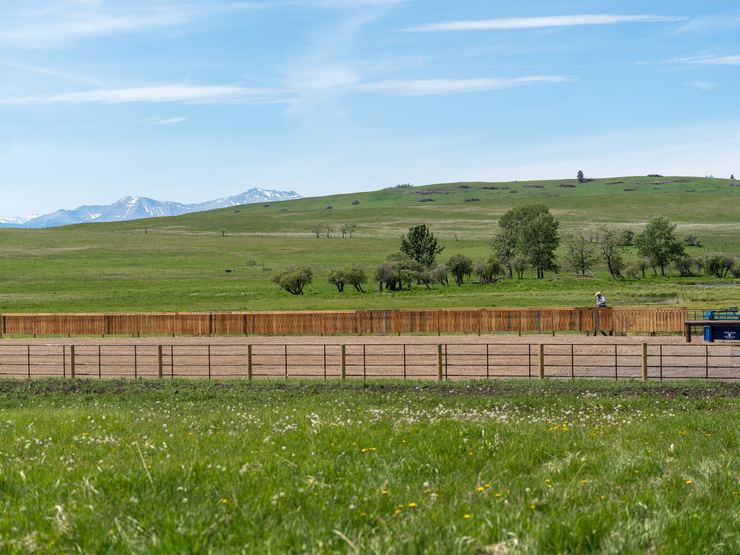

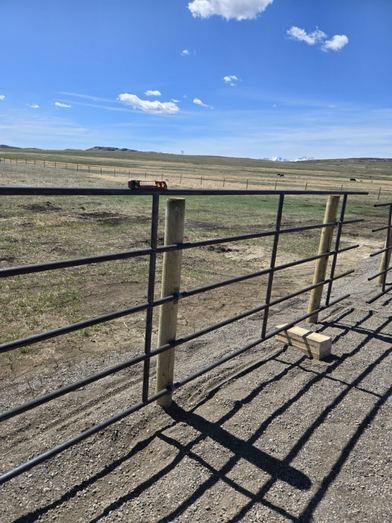

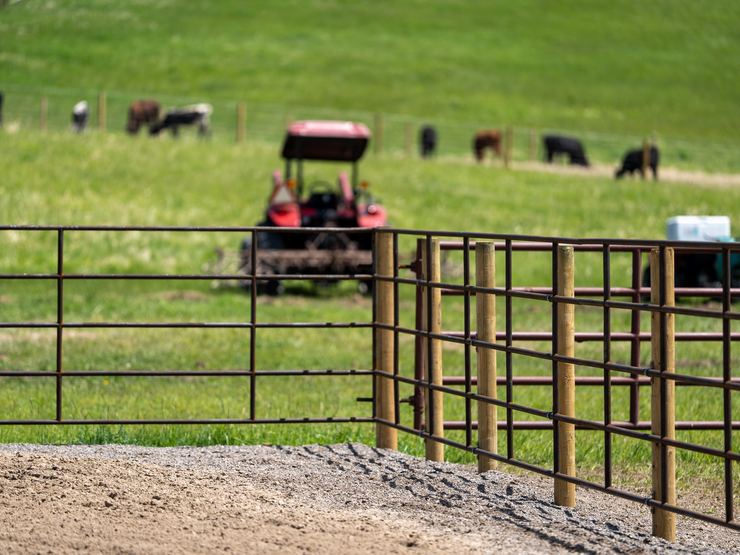

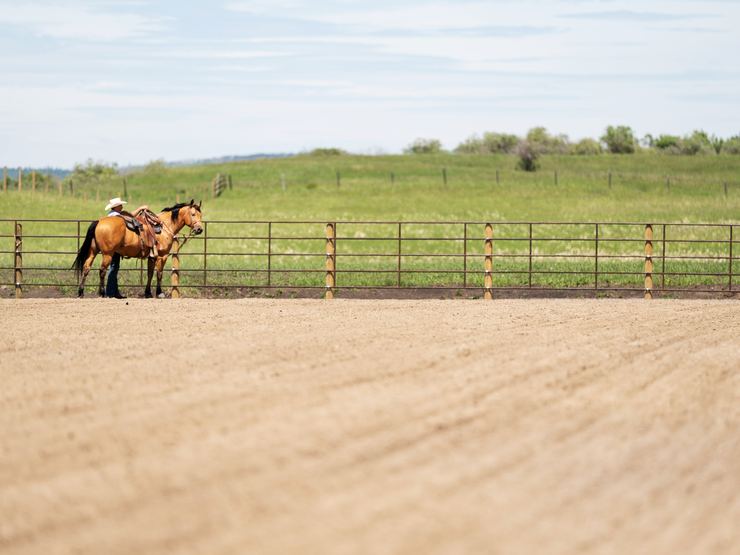

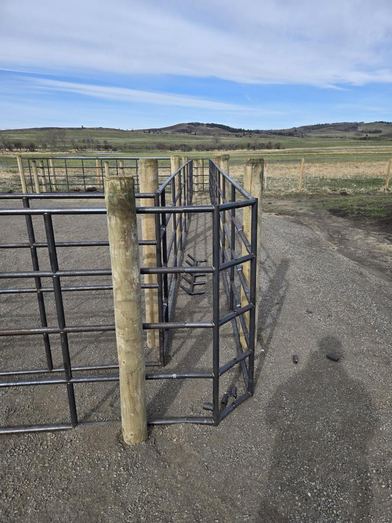

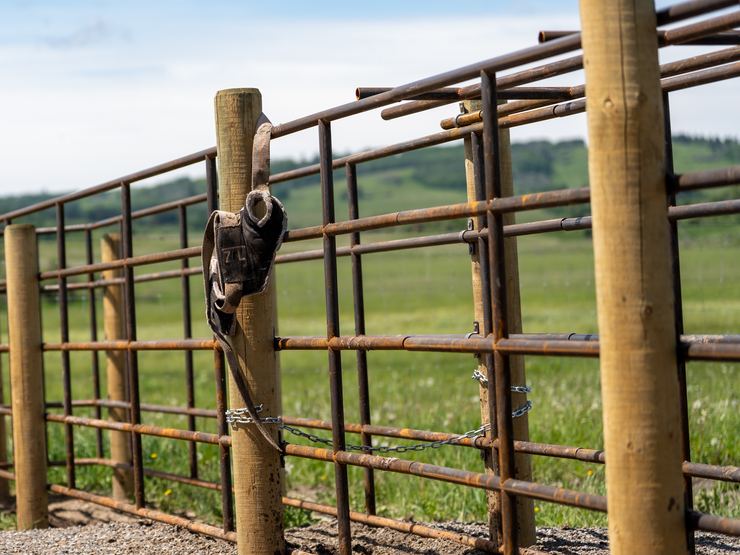

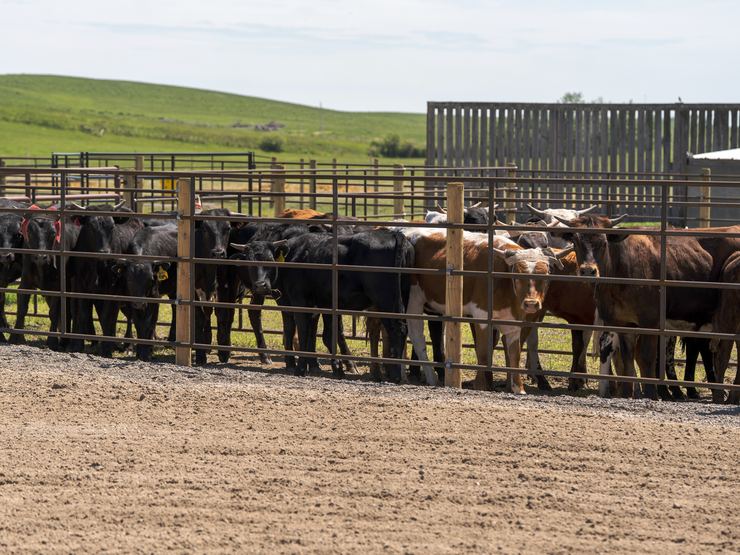

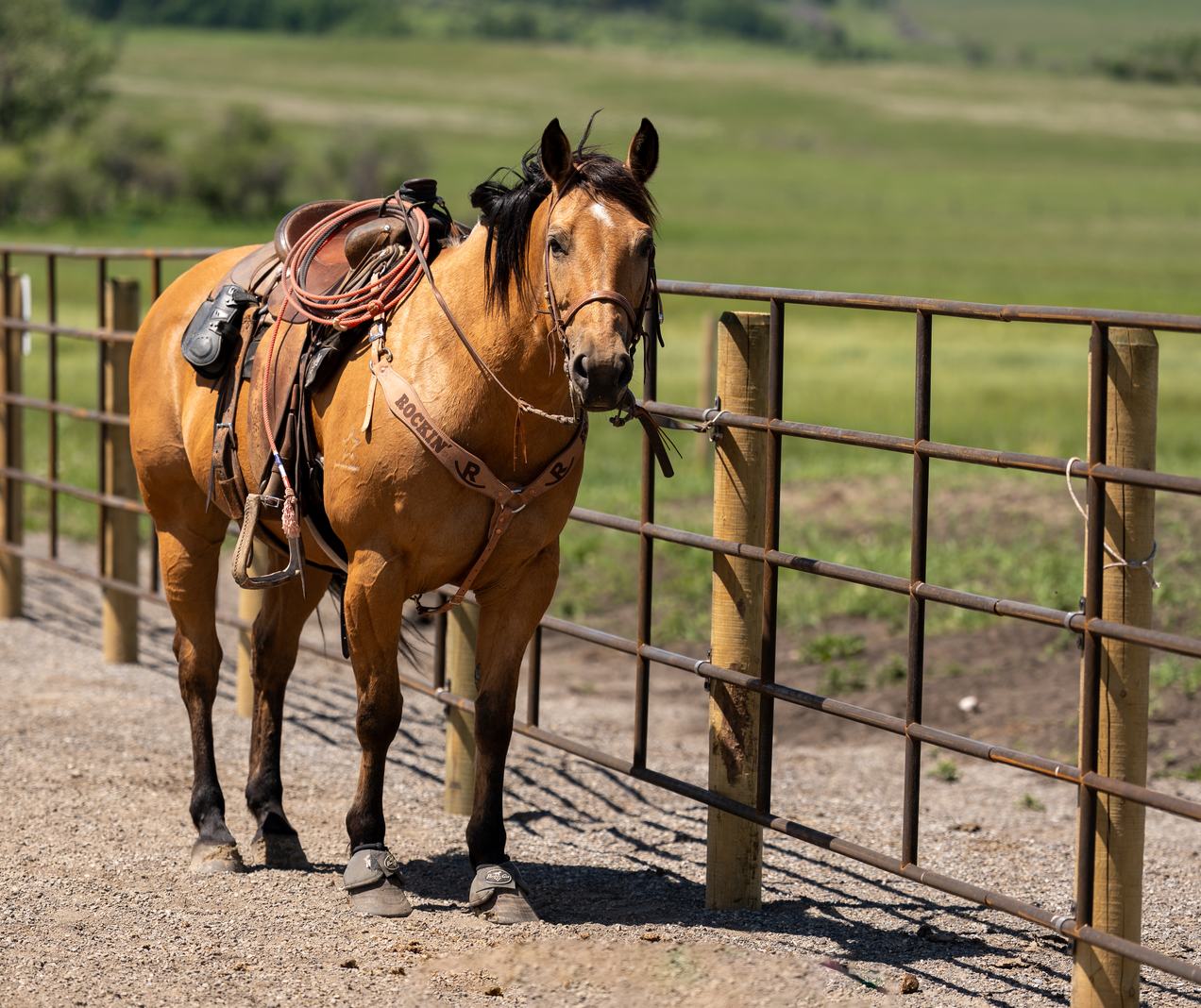

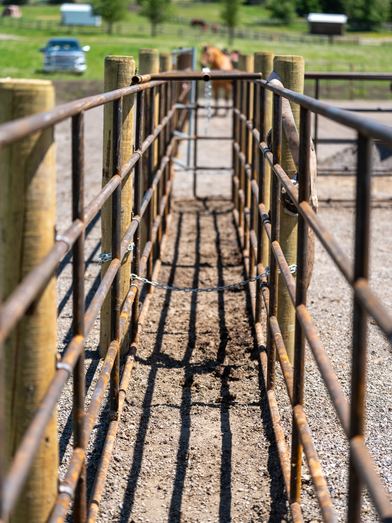

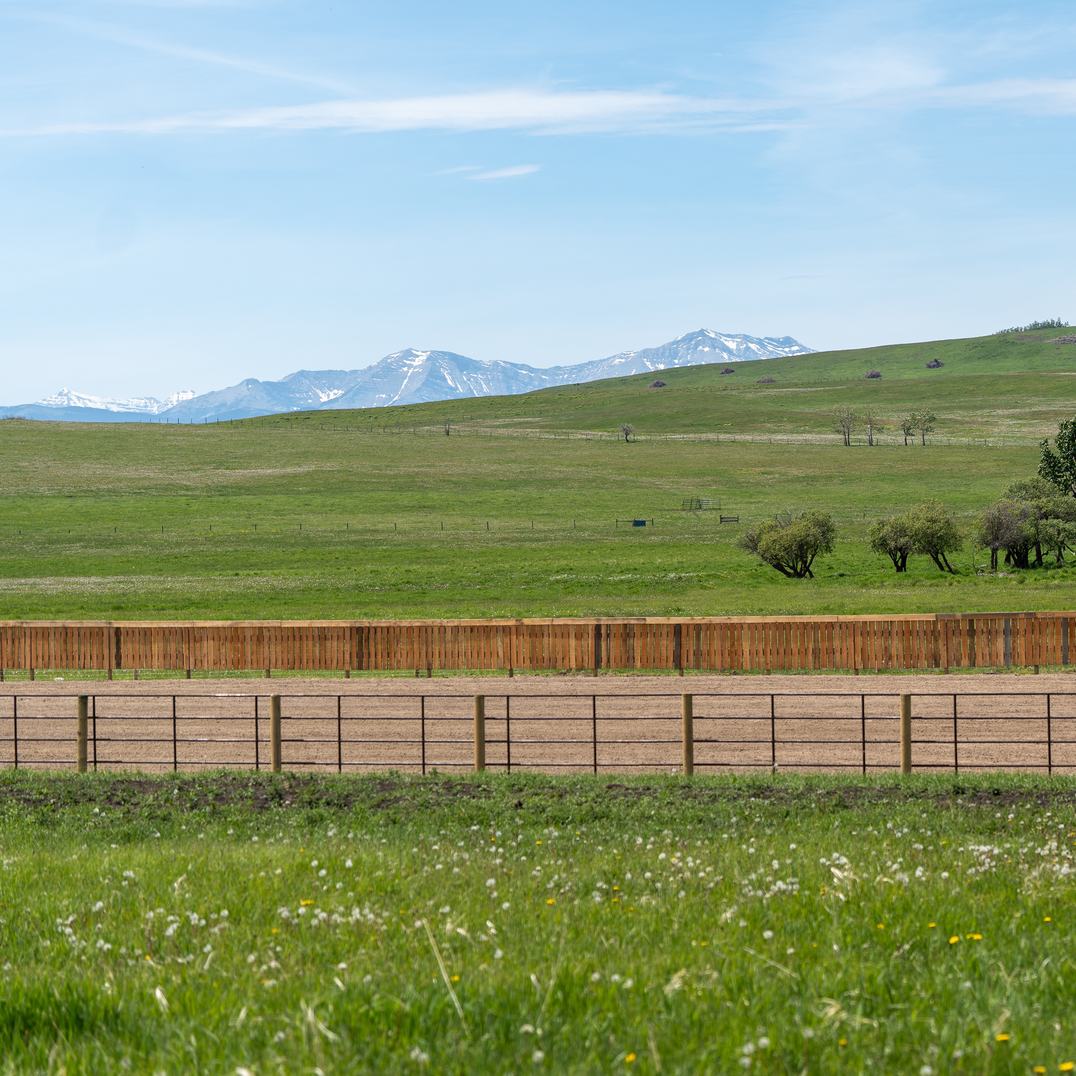

Photos of Ranchcore continuous fencing panel installations across Alberta — close-ups, corrals, and the system at work on real properties.
Common Questions
Our panels are built entirely from 1-1/4" OD, 14ga steel tubing — including the uprights. No flat bar anywhere. Panels and directional connectors join with 10" straight connectors, which makes installation far more forgiving when posts aren't perfectly straight.
Approximately 135 lb per 20-foot panel.
Black Diamond, Alberta — and we can ship our continuous fence panels anywhere in Canada.
Yes. We'll bundle and load the panels for you.
Yes — we can arrange shipping to your location anywhere in Canada.
Panels and directional connector pipe are laser welded, which minimizes heat distortion without sacrificing strength.
Two people are recommended.
Reach out by phone or e-mail. We're also happy to help with your design and quantity selection.
Credit card, e-transfer, bank draft, and wire transfer.
Yes. Dealers and customers looking for larger quantities can contact us for bulk pricing.
Get in Touch
Have questions, need a quote, or ready to order? Reach out — we'd be happy to help.
Request a Quote
Tell us about your project and we'll get back to you with pricing.
